Bolondi XB031-AAZ

3000 PSI Drum Cleaning Head
Water Powered Self Spinning

The XB031AAZ has a water driven “Aqua motor” that requires a diffuser to drive the aqua motor's turbine.
The diffusers are matched according to the flow used, so we match these cleaning heads to your systems flow and pressure.
If you should use these cleaning heads on a different system. It may be necessary to change the both the diffuser and the outlet nozzles.

Material:
aisi 316 + bronze
Flow:
max 60lt/min
16 usgpm
Pressure:
200 bar / 3000 psi
Temperature:
90C. - 194F.
Spinning speed:
fast
Filter:
yes
Spray pattern:
cleaning sector 360°
Min. pass through hole
40mm
Nozzles:
2 - 4
Complete cycle:
25 Revolutions
Complete cycle time:
65 Seconds
Wieght:
5.5 KG - 12.1 Lbs.
h
Bolondi XC061-AAH

3000 PSI IBC Cleaning Head
Water Powered Self Spinning

The XC061-AAH has a larger more advanced water driven “Aqua motor” with a variable speed diffuser.
The rotational speed of the XC061-AAH can be adjusted by changing the speed position as indicated on outside of the cleaning head.

Material:
aisi 316 + bronze
Flow:
max 60lt/min
16 usgpm
Pressure:
200 bar / 3000 psi
Temperature:
90C. - 194F.
Spinning speed:
fast
Filter:
700 Micron
Spray pattern:
cleaning sector 360°
Min. pass through hole
76mm
Nozzles:
2 - 4 / 1/8 NPT
Complete cycle:
15 - 25 Revolutions
Complete cycle time:
6  - 90 Seconds
Wieght:
7.5 KG - 16.5 Lbs.
h

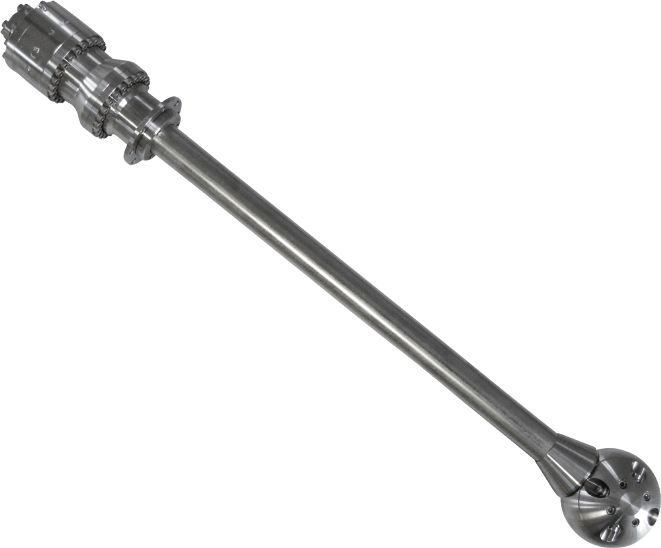

Bolondi XB586A

7250 PSI IBC Cleaning Head
Water Powered Self Spinning

Material:
aisi 316 + bronze
Flow:
max 60lt/min
16 usgpm
Pressure:
500 bar / 7250 psi
Temperature:
90C. - 194F.
Filter:
700 Micron
Spinning speed:
16 RPM
Application:
cleaning sector 360°
Nozzles:
2 - 4
Complete cycle:
96 Rotations
Complete cycle time:
6 Min.
Wieght:
10.5 KG - 23.1 Lbs.
h

Bolondi MW586A

7250 PSI IBC Cleaning Head
Water Powered Self Spinning

Material:
aisi 316 + bronze
Flow:
max 60lt/min
16 usgpm
Pressure:
500 bar / 7250 psi
Temperature:
90C. - 194F.
Filter:
700 Micron
Spinning speed:
slow
Application:
cleaning sector 360°
Nozzles:
2 - 4
Complete cycle:
10 - 16 Rotations
Complete cycle time:
4.8 Min.
Wieght:
9.6 KG - 21.2 Lbs.
